Week Introduction

Learning Outcomes (Week 4 Focus)

By the end of this week, you should be able to:

• LO2 - Technical Foundations: Explain how networks transmit data and why packet-based communication creates security challenges
• LO3 - Threat Landscape: Identify network-based attack patterns (interception, modification, spoofing)
• LO4 - Risk Reasoning: Analyze trust boundaries in network architectures and their security implications

Lesson 4.1 · Networks as Attack Surface Multipliers

Core principle: Networks enable collaboration and resource sharing — but every connection is a potential attack vector. The moment a system joins a network, it becomes accessible to anyone else on that network (and potentially the entire internet).

What networks provide:

• Communication: Email, messaging, video calls
• Resource sharing: File servers, printers, databases
• Remote access: Cloud services, remote desktop, SSH
• Distributed computing: Load balancing, distributed databases

Security trade-off: Standalone (air-gapped) systems are highly secure but useless for modern work. Networked systems are productive but exposed. Organizations must balance connectivity with protection.

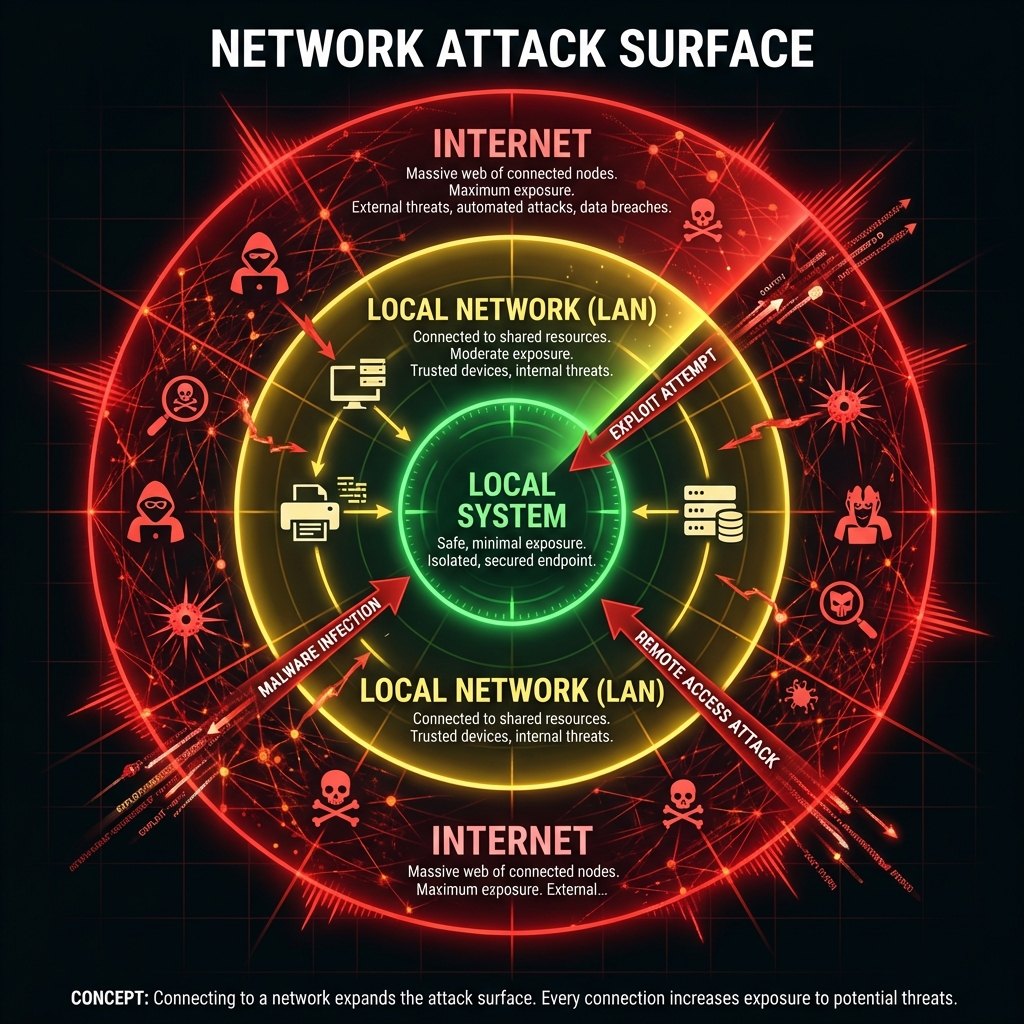

Attack surface expansion:

• Local system: Attacker needs physical access (very limited threat)
• Internal network: Anyone on LAN can attack (insiders, lateral movement)
• Internet-facing: Entire world can probe for vulnerabilities (maximum exposure)

Defender assumption: Treat all network traffic as potentially hostile. Never trust data simply because it arrived over a network connection.

Lesson 4.2 · Packets: The Fundamental Unit of Network Communication

💡 Mental model

Imagine sending a book by tearing out pages, putting each in an envelope with addressing info, and mailing them separately. That's how networks send data — in small chunks called packets.

Why packets?

• Efficiency: Multiple devices can share the same network link (multiplexing)
• Resilience: If one packet is lost, only that piece needs retransmission (not entire file)
• Routing flexibility: Packets can take different paths to destination (avoids congestion)

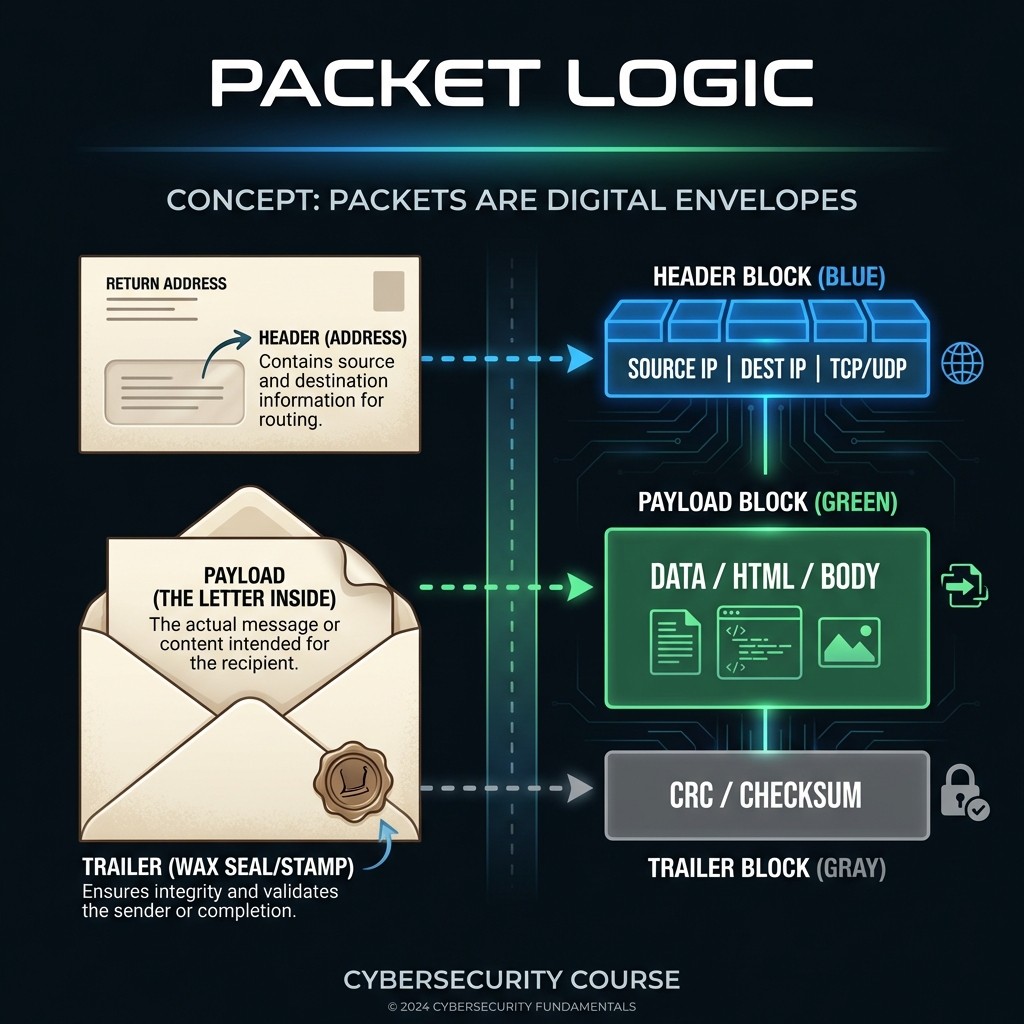

Packet structure (simplified):

• Header: Source IP, destination IP, protocol type, sequence number
• Payload: Actual data being transmitted (email content, web page, file chunk)
• Trailer: Error-checking information (checksum)

Security implications:

• Interception: Anyone on the network path can copy packets as they pass by (passive eavesdropping) — packets aren't encrypted by default
• Modification: Man-in-the-middle attacks can alter packet contents before forwarding them (active tampering)
• Replay: Attacker captures legitimate packets and retransmits them later (e.g., replaying a "transfer $1000" command)
• Spoofing: Forging source address in packet header (pretending to be someone else)

Defender principle: Assume network is hostile. Use encryption (TLS/HTTPS) to protect confidentiality and integrity. Use authentication to prevent spoofing.

Lesson 4.3 · TCP/IP Model: Security at Every Layer

Why layering matters: Networks are complex. Layering breaks the problem into manageable pieces — each layer provides services to the layer above and uses services from the layer below. Each layer is also a potential attack target.

The four layers (bottom to top):

• 1. Link Layer (Physical/Data Link): How bits travel over wires/wireless
  Protocols: Ethernet, Wi-Fi (802.11)
  Security concerns: Physical access (tap wires), Wi-Fi eavesdropping (unencrypted networks)
  Controls: WPA3 encryption, physical security, MAC address filtering
• 2. Internet Layer (Network): Addressing and routing packets between networks
  Protocols: IP (Internet Protocol), ICMP
  Security concerns: IP spoofing (forged source addresses), routing attacks
  Controls: Ingress/egress filtering, IPsec (encrypted IP)
• 3. Transport Layer: Reliable end-to-end communication
  Protocols: TCP (reliable, connection-oriented), UDP (fast, connectionless)
  Security concerns: Port scanning (reconnaissance), SYN floods (denial of service)
  Controls: Firewalls (block ports), rate limiting, connection tracking
• 4. Application Layer: User-facing protocols
  Protocols: HTTP/HTTPS (web), SMTP (email), DNS (name resolution), SSH (remote access)
  Security concerns: Application vulnerabilities (XSS, SQLi), credential theft, malware delivery
  Controls: TLS encryption, input validation, authentication, web application firewalls

Security insight: Attacks can target any layer. A firewall (layer 3/4) won't stop XSS attacks (layer 7). TLS encryption (layer 4/7) won't stop ARP spoofing (layer 2). Defense-in-depth means controls at multiple layers.

Example multi-layer attack: Attacker ARP spoofs (layer 2) to intercept traffic, downgrades HTTPS to HTTP (layer 7), then steals credentials (application vulnerability).

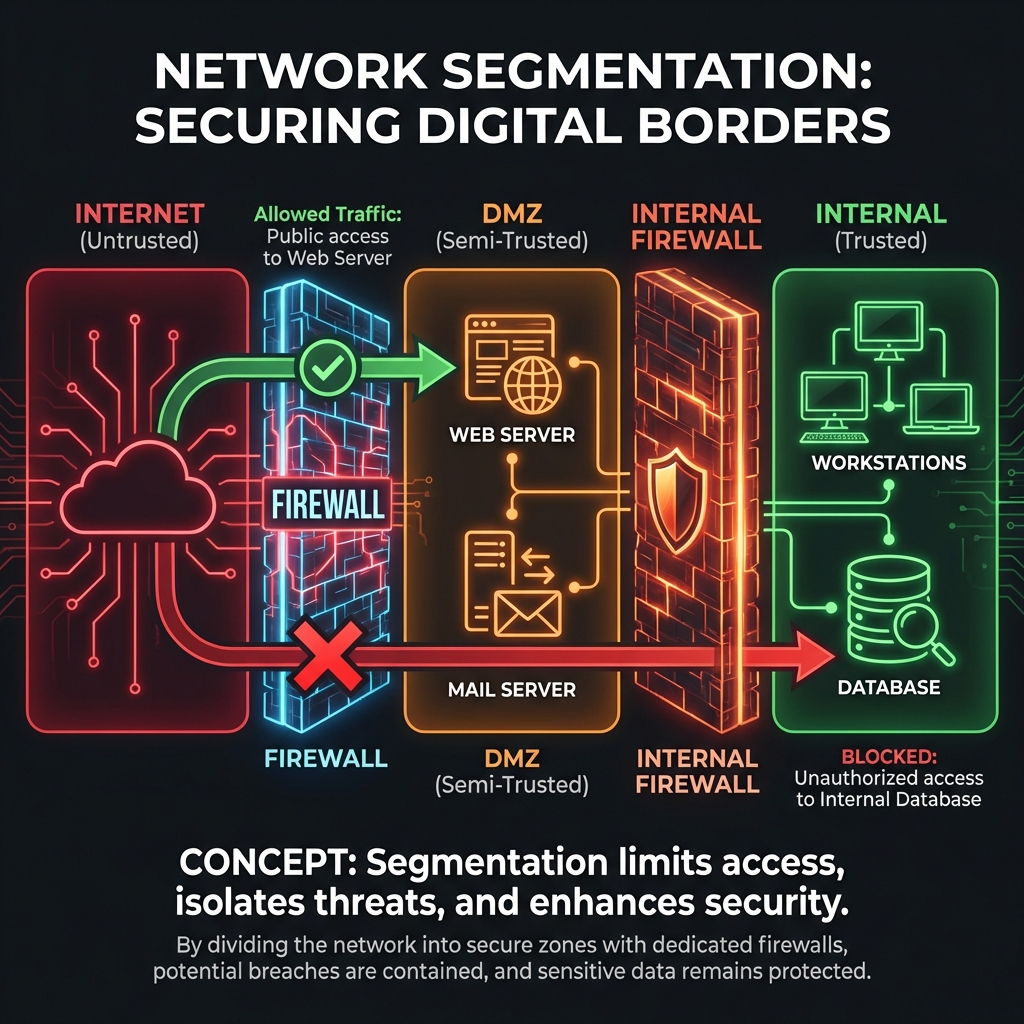

Lesson 4.4 · Network Segmentation and Trust Boundaries

Core principle: Not all parts of a network should trust each other equally. Segmentation creates zones with different security policies, limiting blast radius when compromise occurs.

Common network zones:

• Internet (Untrusted Zone): Hostile, fully exposed
  Assumption: All traffic is potentially malicious
  Controls: Firewalls, IDS/IPS, strict filtering
• DMZ (Demilitarized Zone): Semi-trusted — hosts public-facing services (web servers, email gateways)
  Assumption: Will likely be attacked, limit damage if compromised
  Controls: Hardened systems, no direct access to internal network, heavy monitoring
• Internal Network: Trusted — employee workstations, internal apps
  Assumption: Users authenticated, but insider threats exist
  Controls: Network access control (NAC), endpoint protection, segmentation by department
• Sensitive/Restricted Network: High-trust — databases, financial systems, HR data
  Assumption: Only specific people/systems need access
  Controls: Strict access control, encryption, audit logging, air-gapping (physical separation)

Trust boundary violations (how breaches spread):

• Attacker compromises DMZ web server (initial foothold)
• Web server has excessive permissions to internal database (misconfiguration)
• Attacker pivots from DMZ → Internal Network → Sensitive Data (lateral movement)
• Entire breach enabled by lack of proper segmentation

Defender principle: Zero Trust Architecture

Modern approach: "Never trust, always verify." Even internal network traffic should be authenticated and authorized. Don't assume "inside the firewall = safe."

Lesson 4.5 · Why Networks Are Prime Attack Targets

Strategic reality: Networks are attractive because they enable remote access — attackers don't need physical presence. Most modern attacks begin with network reconnaissance and exploitation.

Why attackers love networks:

• Remote access: Attack from anywhere in the world (low risk, high reward)
• Visibility: Network traffic reveals what services are running, what data flows where
• Scale: Automated tools can scan millions of IP addresses for vulnerabilities
• Anonymity: VPNs, Tor, compromised hosts hide attacker identity

Common network attack patterns:

• Reconnaissance: Port scanning (nmap), DNS enumeration, service fingerprinting
• Interception: Packet sniffing, man-in-the-middle, session hijacking
• Denial of Service: Overwhelming target with traffic (DDoS)
• Exploitation: Exploiting vulnerable network services (unpatched servers)
• Lateral movement: Using compromised system to attack others on internal network

Defense-in-depth for networks:

• Perimeter: Firewalls, IDS/IPS (intrusion detection/prevention)
• Segmentation: VLANs, DMZs, micro-segmentation
• Encryption: TLS for web, VPN for remote access, IPsec for site-to-site
• Monitoring: Network traffic analysis, anomaly detection, SIEM
• Access control: Network access control (NAC), 802.1X authentication

Self-Check Questions (Test Your Understanding)

Answer these in your own words (2-3 sentences each):

1. Why does connecting a system to a network increase attack surface? What changes from a security perspective?
2. Explain how packet-based communication enables interception attacks. Why aren't packets encrypted by default?
3. What is a DMZ in network architecture? Why would you put a web server there instead of on the internal network?
4. Give one example of an attack that targets each TCP/IP layer (link, network, transport, application).
5. What is the difference between "trust by network location" and "zero trust" architecture?

Lab 4 · Network Trust Boundaries and Attack Paths

Time estimate: 30-45 minutes

Objective: Map network zones, identify trust boundaries, and trace how an attacker could move laterally through a network. You will analyze data flows and propose segmentation controls.

Step 1: Choose Your Network Context (5 minutes)

Select one scenario (or propose your own):

• Small business: Office with 20 employees, file server, public website
• University campus network: Student WiFi, academic systems, administrative databases
• E-commerce company: Web storefront, payment processing, customer database, internal email
• Home network: Smart home devices, laptops, gaming consoles, NAS storage
• Cloud application: Web app in AWS/Azure with frontend, backend API, database

Why it matters: Different contexts have different trust requirements and attack patterns.

Step 2: Map Network Zones (10 minutes)

Identify at least 3 network zones in your chosen environment:

• Zone name: (e.g., "Internet," "DMZ," "Internal," "Database Tier")
• Trust level: Untrusted, semi-trusted, trusted, highly-restricted
• What lives here: Systems, services, users
• Security assumption: What threats exist in this zone?

Example for e-commerce:

• Zone 1 - Internet (Untrusted):
  Contains: Customer browsers, potential attackers
  Assumption: Fully hostile, all traffic suspect
• Zone 2 - DMZ (Semi-trusted):
  Contains: Web servers, load balancers
  Assumption: Exposed to attacks, will likely be targeted
• Zone 3 - Internal Network (Trusted):
  Contains: Application servers, employee workstations
  Assumption: Authenticated users, but insider threats exist
• Zone 4 - Database Tier (Highly-restricted):
  Contains: Customer data, payment information
  Assumption: Only specific systems need access, heavily monitored

Step 3: Map Data Flows Between Zones (10 minutes)

For each zone boundary, identify what traffic flows across it:

• Source → Destination: Which zones communicate?
• Protocol/Port: What type of traffic? (HTTP/443, SSH/22, SQL/3306)
• Purpose: Why does this traffic need to flow?
• Is it necessary? Could it be eliminated or restricted?

Example flows:

• Internet → DMZ: HTTPS/443 (customers browsing website) — necessary
• DMZ → Internal: API calls/8080 (web servers fetching product data) — necessary
• Internal → Database: SQL/3306 (app servers querying customer records) — necessary
• DMZ → Database: Direct SQL/3306 — DANGEROUS (unnecessary, should go through Internal)

Step 4: Identify Attack Path (Lateral Movement) (10 minutes)

Trace a realistic attack scenario showing how an attacker moves between zones:

• Initial compromise: Which zone does attacker breach first? How?
• Pivot point: What misconfiguration or vulnerability allows movement to next zone?
• Lateral movement: What path does attacker take? (Zone A → Zone B → Zone C)
• Final objective: What sensitive data/system does attacker reach?

Example attack:

• Step 1: Attacker exploits web app vulnerability (SQL injection) on DMZ web server
• Step 2: Web server has stored credentials to internal app server (bad practice)
• Step 3: Attacker uses credentials to SSH from DMZ → Internal Network
• Step 4: Internal network allows any system to connect to database (no segmentation)
• Step 5: Attacker reaches Database Tier, exfiltrates customer payment data

Step 5: Propose Segmentation Controls (5 minutes)

Identify at least two controls that would block or detect the attack path:

• Preventive control: What would stop lateral movement?
• Detective control: What would alert defenders?
• Principle applied: Least privilege, segmentation, monitoring, etc.

Example defenses:

• Preventive: Firewall rule - DMZ systems cannot initiate connections to Database Tier (must go through Internal application tier only)
• Preventive: Remove stored credentials from web server (use short-lived tokens, service accounts with minimal privilege)
• Detective: Monitor for SSH connections originating from DMZ (unusual, should trigger alert)
• Detective: Database access logging - flag queries from unexpected source IPs

Step 6: Synthesis (5 minutes)

Write a short paragraph (3-5 sentences) answering:

"Why is network segmentation a critical security control? How does it limit blast radius when a breach occurs?"

Example answer:

Network segmentation is critical because it assumes breach is inevitable and limits how far attackers can move. By dividing the network into zones with enforced boundaries (firewalls, access controls), compromise of one zone doesn't automatically grant access to all others. In our e-commerce example, proper segmentation means even if the DMZ web server is compromised, the attacker cannot directly reach the database — they must first breach the internal application tier, which has additional defenses and monitoring. This defense-in-depth approach multiplies the attacker's effort while giving defenders multiple opportunities to detect and respond.

Success Criteria (What "Good" Looks Like)

Your lab is successful if you:

• ✅ Mapped network zones with clear trust boundaries
• ✅ Identified data flows between zones (necessary vs unnecessary)
• ✅ Traced realistic lateral movement attack path (not just "attacker gets in")
• ✅ Proposed segmentation controls that would break the attack chain
• ✅ Explained why segmentation reduces blast radius in breach scenarios

Extension (For Advanced Students)

If you finish early, explore these questions:

• Research "micro-segmentation" vs traditional network segmentation. What's the difference?
• How does Zero Trust Network Access (ZTNA) differ from VPN-based remote access?
• What role does network traffic analysis (NTA) play in detecting lateral movement?

🎯 Hands-On Labs (Free & Essential)

Practice how network traffic flows, how packets are inspected, and where trust breaks down. Complete these labs before moving to reading resources.

💡 Lab Tip: When analyzing packets, always identify the protocol first (DNS, HTTP, TLS). The protocol tells you what "normal" should look like.

Resources (Free + Authoritative)

Work through these in order. Focus on security implications of network design.

Tip: Completion and XP persist via localStorage. If progress doesn't update immediately, refresh once.

Weekly Reflection Prompt

Aligned to LO3 (Threat Landscape) and LO4 (Risk Reasoning)

Write 200-300 words answering this prompt:

Explain how network segmentation reduces risk when a breach occurs. Use the lateral movement attack scenario from your Lab 4 work as an example.

In your answer, include:

• What the attacker's initial foothold was (which zone was compromised first)
• What trust boundary the attacker needed to cross to reach sensitive data
• How proper segmentation would have blocked or slowed the attack
• Why "defense-in-depth" requires controls at multiple network layers (not just perimeter firewall)
• One detective control that would alert defenders to lateral movement

What good looks like: You explain the attack chain and how breaking one link stops the entire attack. You show understanding that networks aren't "trusted inside, untrusted outside" — they're collections of zones with enforced boundaries. You connect segmentation to the principle of limiting blast radius.
